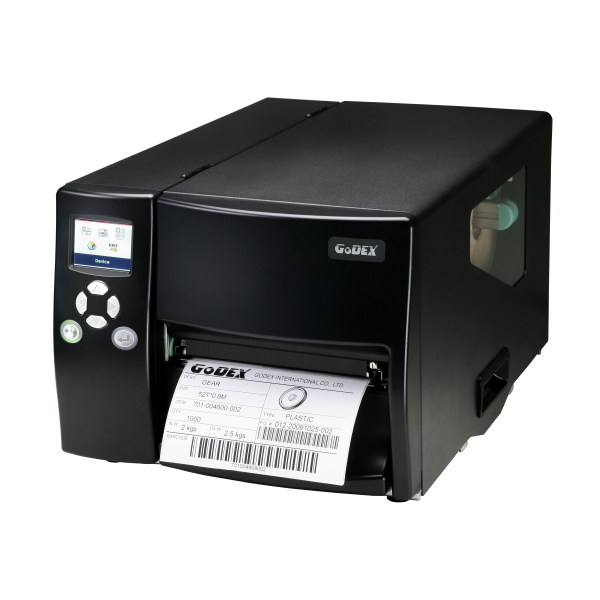

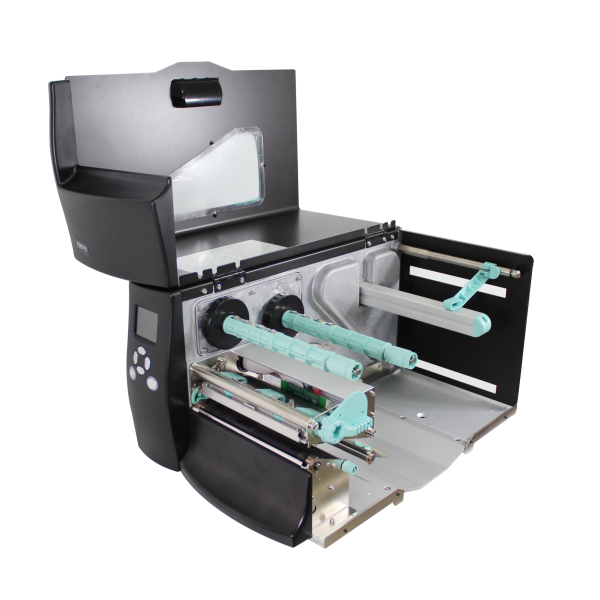

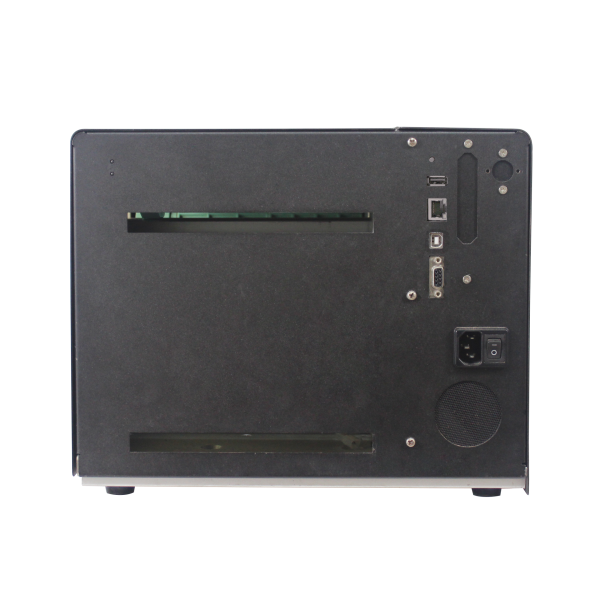

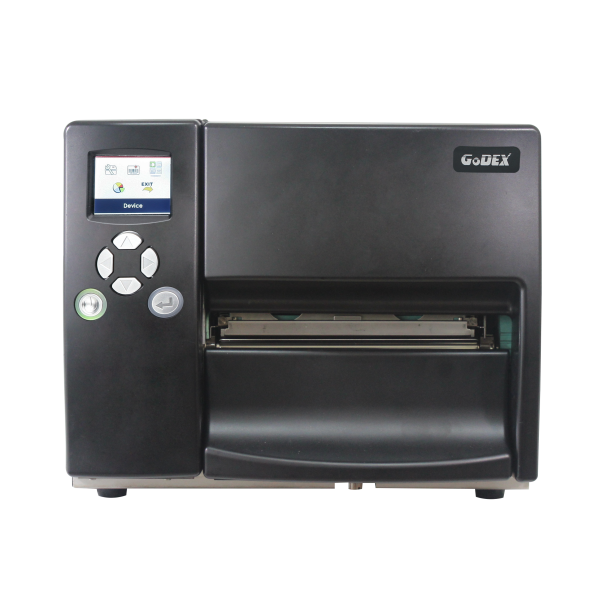

GoDEX EZ6250i (203 dpi) / EZ6350i )300 dpi) Industrial Label Printer

GoDEX EZ6250i (203 dpi) / EZ6350i )300 dpi) Industrial Label Printer

Save $228.65
$2,295.00
$2,066.35
SKU 011-62iF01-001
DPI

Upgraded Robust 6" Industrial Printer.

EZ6250i which has faster printing speed to reach 7 IPS for 203 dpi resolution, Larger flash memory to 8 MB and build in USB host to support various applications.

  • Available for 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolution
  • Intelligent Color LCD panel for easy configuration
  • Robust metal casing and a solid print mechanism to take on heavy duty jobs
  • Calibration button makes label Calibration simple and fast
  • Multiple interfaces for multiple requirements
  • USB Host for extension memory and standalone operation
  • Automatic self-adjustment for coated inside/outside ribbons
  • Supports 450 meter ribbon capacity and 8 inch diameter label (3"core)
  • Available for bulk printing
  • Modular TPH easy to do the maintenance
Specifications
Print Method Thermal Transfer / Direct Thermal
Resolution 203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed 7 IPS (177 mm/s) / 5 IPS (127 mm/s)
Print Width 6.61” (168 mm)
Print Length Min. 0.16” (4 mm)** ; Max. 70” (1778 mm) / Min. 0.16” (4 mm)** ; Max. 30” (762 mm)
Processor 32 Bit RISC CPU
Memory Flash 8 MB Flash (4 MB for user storage) SDRAM 32 MB
Sensor Type Adjustable reflective sensor and transmissive sensor, left aligned
Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width : 2” (50.8 mm) Min. - 7” (178 mm) Max
Thickness : Min. 0.0024” (0.06 mm) – Max. 0.01” (0.25 mm)
Label Roll Diameter : Max. 8” (203.2 mm) with 3" (76.2 mm) core / Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Core Diameter : 1.5” (38.1 mm) - 3” (76.2 mm)
Ribbon Types: Wax, wax/resin, resin
Length: 1471’ (450 m)
Width: Min 2.36” – Max. 6.85” (60 mm - 174 mm)
Ribbon roll diameter.: 2.99“ (76 mm) Max
Core diameter: 1” (25.4 mm)
Printer Language EZPL , GEPL, GZPL auto switch
Software Label design tool: GoLabel II (for EZPL only) (Windows)
Management tools: GoTools (Windows/Android) GoUtility (Windows)
Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B
0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
8 times expandable in horizontal and vertical directions
TTF Fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001)
0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes 1-D Bar codes:
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A,B,C), EAN-8/EAN-13 (with 2 & 5 digits extension)
EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5)
Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit
RPS 128, Standard 2 of 5,Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart
Random Weight and Pharmacode
2-D Bar codes
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
GS1 Composite, DotCode, Marco PDF 417
Code Pages CODEPAGE 437, 737, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
Unicode UTF8, UTF16BE, UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces USB 2.0 (B-Type)
Serial port: RS-232 (DB-9)
Ethernet 10/100 Mbps
USB Host (A-Type)
Control Panel Color TFT LCD with navigation button
Calibration button
Power on/off button
Power Internal auto switching power supply
Input: AC 100-240V, 50-60Hz
Real Time Clock Standard
Environment Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency Approvals CE(EMC), FCC Class A, CB, cUL, CCC
Dimension Length: 20.15” (512 mm)
Height: 11.45” (291 mm)
Width: 10.78” (274 mm)
Weight 33 lbs (15Kg) ,excluding consumables
Options Cutter Module
Internal Rewinder with Label Dispenser
Parallel port adopter module (Centronic female 36-pin)
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V
External label rewinder
